Model: VG-HTC490C

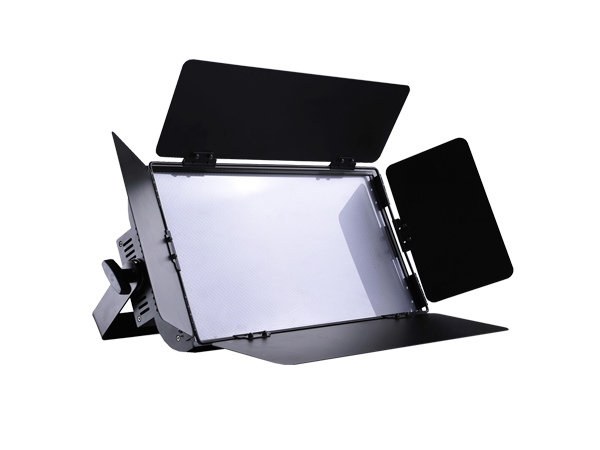

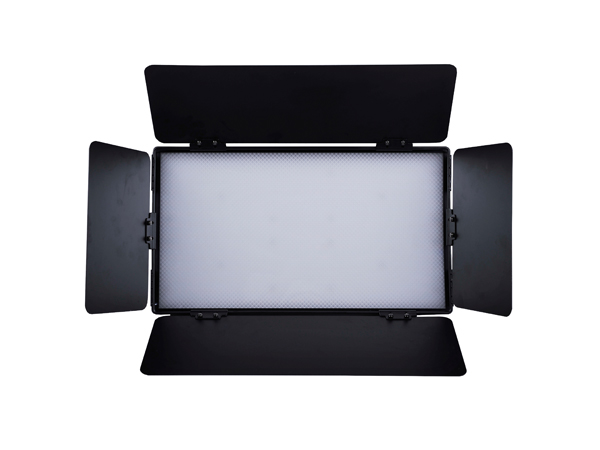

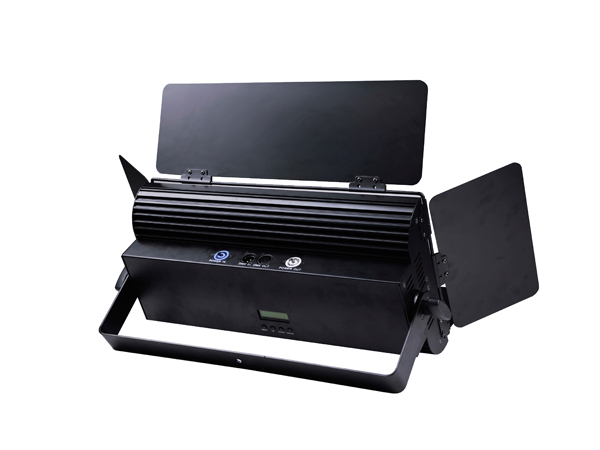

Name: Bicolor LED Soft Video Panel Light HTC490C

Product Model: VG-HTC490C

Commissioning Date: 2017-01

Sales Status: Selling

Reference Price:

·Based on the LED Film and Television Flat Light, using high brightness SMD LED chips beads matrix arrangement of large area, through the whole aluminum shell to realize heat dissipation naturally. This light has high brightness, good head dissipation, ultra-quiet and other features. It can satisfy the requirement of indoor and outdoor movie filming for the lighting layout. It is a good substitute of the traditional three basic colors light.

Features

·The light’s lighting function is controlled by DMX-512, very convenient;

·Using bead LED chips, pure color temperature, can realize 0-100% linear dimmer;

·The light body adopts outside frame design, the modeling is beautiful, installation very convenient, safe and reliable;

·The color temperature can be adjusted from warm white to cold white.

Technical Specifications

Light Sources

·LED: 1200pcs 0.2W bicolor high CRI and high brightness LED bead chips

·Lifespan: 50,000hours

·Color: from warm white to cold white

Optics

·Beam angle: 120degree

·Dimmer: 0~100% linear dimmer

Light Output

·Iluminance: full, 680lux@3m; 3200K, 310lux@3m; 5600K, 380lux@3m

·CRI: Ra≥95

·Color temperature: 3200K-5600K adjustable

Control

·DMX channel: 3CH/4CH

·Control mode: DMX-512, Demo mode, Manual

·Control panel: LCD display + 4 buttons

Power Supply

·Related voltage: AC100V-240V, 50/60Hz

·Related power: 200W

Construction

·Body dimension: D480*W270*H127mm

·Net weight: 9kg

·Shell color: black

·Housing material: aluminum alloy

Working Environment

·Working temperature: -25-40℃

·Cooling: aluminum radiator and light body

·Protection rating: IP20

Spare Parts

·Cable: 1set DMX in and DMX out signal cable,  and 1set Power in and Power out power cable with plug [standard configuration]

·Light visor: 1pc light visor [optional configuration]

Package

·Carton board box package size: 650*430*260mm(1pc/carton)

·N.W/G.W/V.W: 9kg/11kg/15kg

·Flight case package size: 780*530*510mm(4pc/case)  [c:18-05-08]

·N.W/G.W: 36kg/63kg [need confirm the weight]

·Flight case package size: 1080*530*510mm(6pc/case) [yg:18-12-21]

·N.W/G.W: 54kg/85kg

·Flight case package size: 1050*635*460mm(6pc/case) [srf:18-12-21]

·N.W/G.W: 54kg/85kg

·Flight case package size: 900*1100*400mm(10pc/case)  [need confirm]

·N.W/G.W: 95kg/125kg

Selling Maintain Spare Parts List

·Switching power supply: VG-HTC490C-P

·LED lamp board: VG-HTC490C-L

·Main board: VG-HTC490C-M

·Drive board: VG-HTC490C-D


Related Products

Model: VG-HTC490C

Name: Bicolor LED Soft Video Panel Light HTC490C

Product Model: VG-HTC490C

Commissioning Date: 2017-01

Sales Status: Selling

Reference Price:

  • VG-HTC490C
  • VG-HTC490C
  • VG-HTC490C
  • VG-HTC490C
  • VG-HTC490C
  • VG-HTC490C
  • VG-HTC490C
Technical Specification

·Based on the LED Film and Television Flat Light, using high brightness SMD LED chips beads matrix arrangement of large area, through the whole aluminum shell to realize heat dissipation naturally. This light has high brightness, good head dissipation, ultra-quiet and other features. It can satisfy the requirement of indoor and outdoor movie filming for the lighting layout. It is a good substitute of the traditional three basic colors light.

Features

·The light’s lighting function is controlled by DMX-512, very convenient;

·Using bead LED chips, pure color temperature, can realize 0-100% linear dimmer;

·The light body adopts outside frame design, the modeling is beautiful, installation very convenient, safe and reliable;

·The color temperature can be adjusted from warm white to cold white.

Technical Specifications

Light Sources

·LED: 1200pcs 0.2W bicolor high CRI and high brightness LED bead chips

·Lifespan: 50,000hours

·Color: from warm white to cold white

Optics

·Beam angle: 120degree

·Dimmer: 0~100% linear dimmer

Light Output

·Iluminance: full, 680lux@3m; 3200K, 310lux@3m; 5600K, 380lux@3m

·CRI: Ra≥95

·Color temperature: 3200K-5600K adjustable

Control

·DMX channel: 3CH/4CH

·Control mode: DMX-512, Demo mode, Manual

·Control panel: LCD display + 4 buttons

Power Supply

·Related voltage: AC100V-240V, 50/60Hz

·Related power: 200W

Construction

·Body dimension: D480*W270*H127mm

·Net weight: 9kg

·Shell color: black

·Housing material: aluminum alloy

Working Environment

·Working temperature: -25-40℃

·Cooling: aluminum radiator and light body

·Protection rating: IP20

Spare Parts

·Cable: 1set DMX in and DMX out signal cable,  and 1set Power in and Power out power cable with plug [standard configuration]

·Light visor: 1pc light visor [optional configuration]

Package

·Carton board box package size: 650*430*260mm(1pc/carton)

·N.W/G.W/V.W: 9kg/11kg/15kg

·Flight case package size: 780*530*510mm(4pc/case)  [c:18-05-08]

·N.W/G.W: 36kg/63kg [need confirm the weight]

·Flight case package size: 1080*530*510mm(6pc/case) [yg:18-12-21]

·N.W/G.W: 54kg/85kg

·Flight case package size: 1050*635*460mm(6pc/case) [srf:18-12-21]

·N.W/G.W: 54kg/85kg

·Flight case package size: 900*1100*400mm(10pc/case)  [need confirm]

·N.W/G.W: 95kg/125kg

Selling Maintain Spare Parts List

·Switching power supply: VG-HTC490C-P

·LED lamp board: VG-HTC490C-L

·Main board: VG-HTC490C-M

·Drive board: VG-HTC490C-D

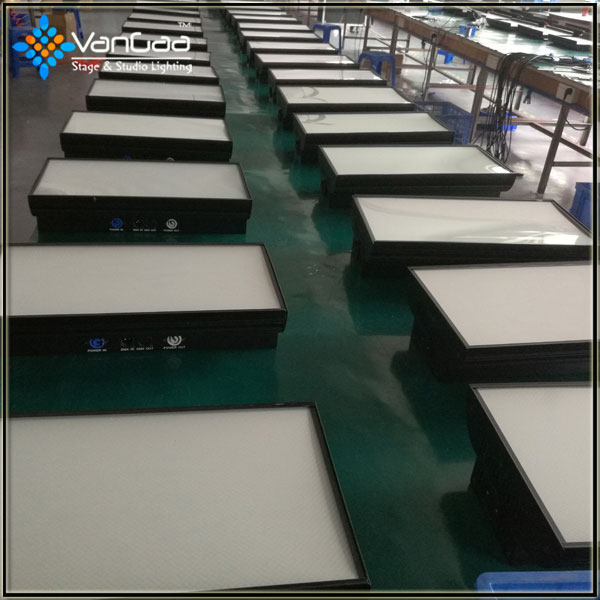

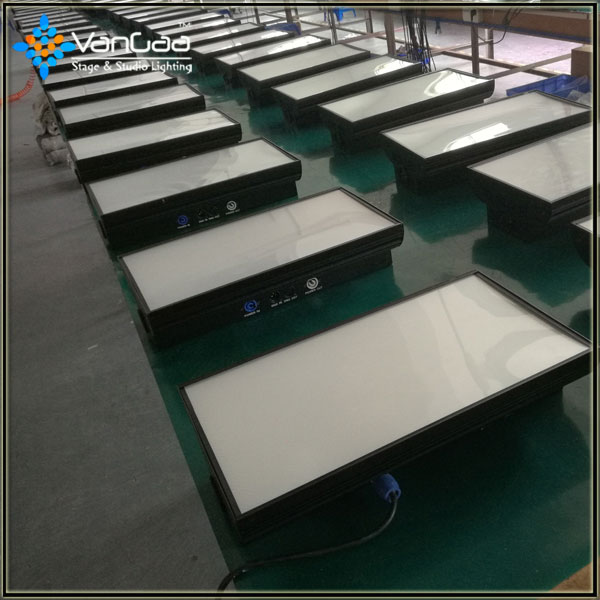

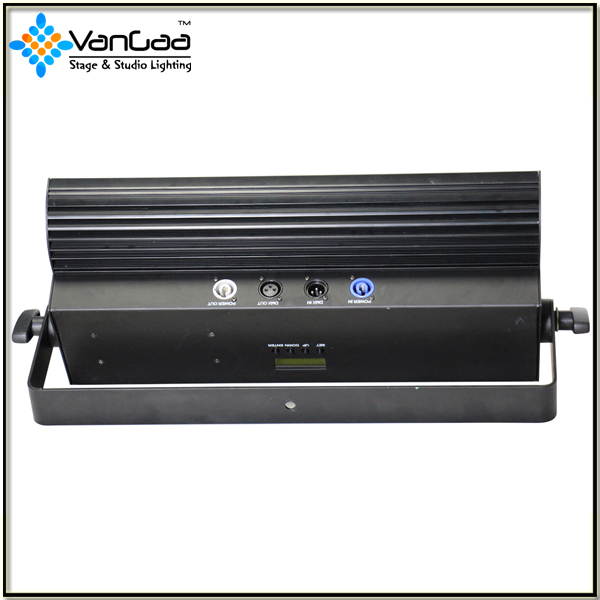

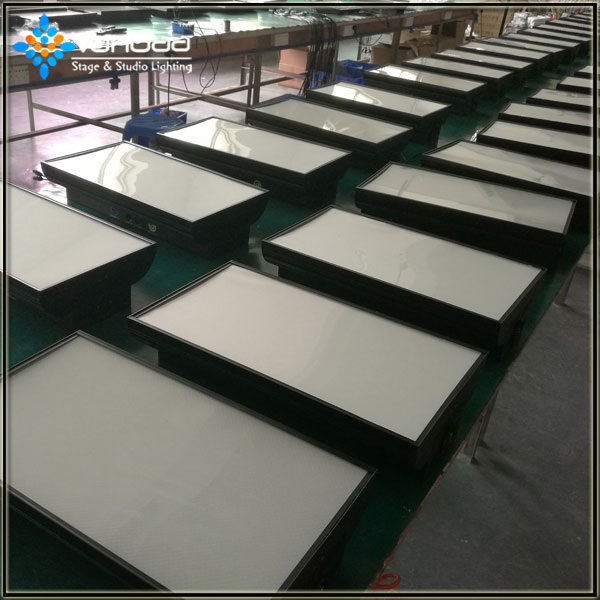

Details Pictures
