LED Video Fresnel Spot Light

Home » Products » LED Video Fresnel Spot Light » VG-PL50W

VG-PL50W
  • VG-PL50W
  • VG-PL50W
  • VG-PL50W
  • VG-PL50W
  • VG-PL50W
  • VG-PL50W

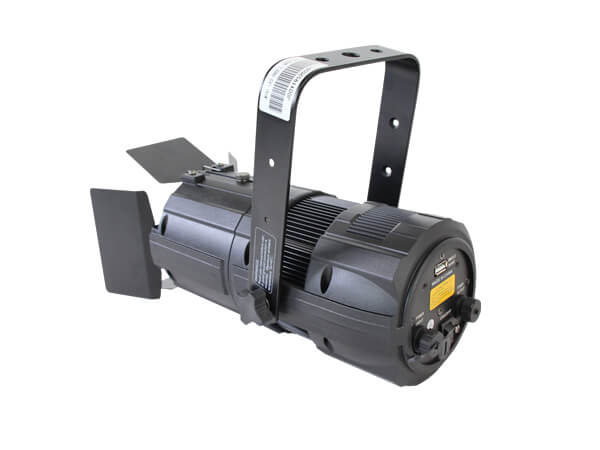

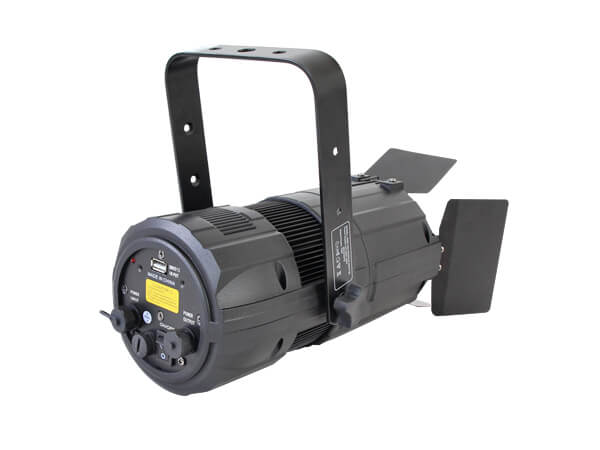

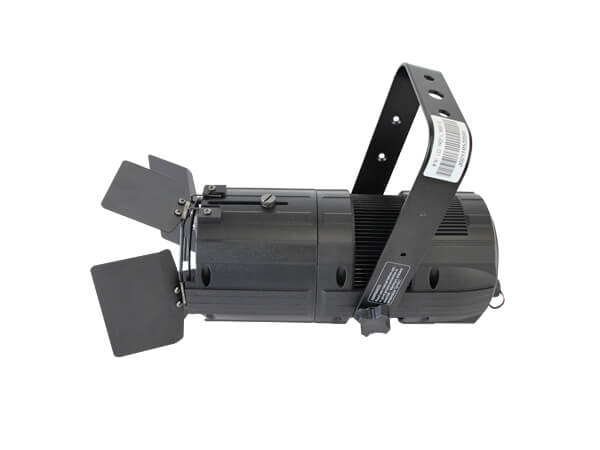

Model: VG-PL50W

Name: 50W LED TV Studio Fresnel Continuous Light

Product Model: VG-PL50W

Commissioning Date: 2020-01

Sales Status: Selling

Reference Price:

·This television projector light equips high power 60W LED lamps as the light source, it’s energy saving. And it uses high efficiency optical lens, light soft. It’s a best choice for film and television performances, studio and other places.

Features

·The internal adopts full copper radiator large area, good heat dissipation, ensure the lifespan of the LED Lamps;

·Through efficient optical lenses, with special heat dissipation design, make the light is downy, small stray light, no glare, eyes more comfortable;

·Use the LED video projector scheme, the light energy saving 80%;

·Because of almost no infrared radiation, it has greatly improve work environment.

Technical Specifications

Light Sources

·LED: 1pc 50W COB LED Lamps

·Lifespan: 500,000h

·Color: CW, WW optional

·Color temperature: 3000K/5600K optional

Optics

·Beam angle: 15-45degree, manual

·Dimmer: 0-100% linear dimmer

Light Output

·Luminous flux: 3440lm-4158lm

·Illuminance: 36580 Lux (1m 15°3200K)

·Optimal projection distance: 2-4m

Control

·Control mode: DMX-512; Auto run

·DMX channel: 2CH

·Display of control panel: LCD display + 4 buttons

Power Supply

·Related voltage: AC100V-240V, 50/60Hz

·Related power: 65W

Construction

·Body dimension: D305*W158*H125mm

·Net weight: 1.8kg

·Shell color: black

·Shell material: aluminium die casting

Working Environment

·Working temperature: -25-40

·Cooling: Radiator and Fan

·Protection rating: IP20

Standard Configuration Spare Part List

·Cable: 1pc 3-pin DMX cable, 1pc power cable with plug(America standard, Euro standard, or other standard)

·User manual: English version user manual

Optional Configuration Spare Parts List

·Clamps: different style clamps optional (choose from VanGaa homepage “Accessaries series”)

·Safety rope: different size safety ropes optional (choose from VanGaa homepage “Accessaries series”)

Package

·Carton board package size: 390*200*200mm(1pc/carton)

·N.W/G.W/V.W: 1.8kg/2.5kg/3.5kg

Selling Maintain Spare Parts List

·Switching power supply: VG-PL50W-A-P

·LED lamp board: VG-PL50W-A-L

·Main board: VG-PL50W-A-M

·Drive board: VG-PL50W-A-D
