Model: VG-4HS432D

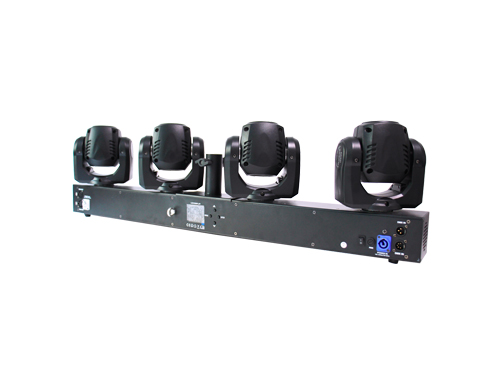

Name: 4 Heads 32W LED Beam Spot Light

Product Model: VG-4HS432D

Commissioning Date: 2016-02-05

Sales Status: Selling

Reference Price:


·This is a very wonderful 4 heads led beam spot light, it is a update version of VanGaa VG-4HS410D. The light is high power, narrow beam, spot is small, it’s very useful for disco, KTV, night bar, club and other entertainment places.

Features

·4 heads spot beam light, every head is 32W 4in1 LED lamp;

·Every head can be controlled individually;

·High power and brightness;

·Narrow beam effect.

Technical Specifications

Light Sources

·LED: 4pcs 32W 4-in-1 RGBW high brightness LED Lamps

·Lifespan: 60,000 hours

·Color: colorful, RGBW mixing

Optics

·Beam angle: 8degree

·Dimmer: 0~100% electronic dimmer

·Strobe: 1~25times/second

Control

·Control signal: DMX512

·DMX channel: 6CH/12CH/14CH/27CH

·Control mode: DMX-512; Master-slave control mode; Auto-run; Sound active

·Function: 4 individual mini LED Moving Head Lights, 4 narrow beams, every light can be controlled individually, with dimmer, strobe, and speed control function

Movement

·Pan: 540degree, pan fine function, 16bit

·Tilt: 270degree, tile fine function, 16bit

Power Supply

·Related voltage: AC90~240V, 50/60Hz

·Related power: 150W

Working Environment

·Working Temperature: -25-40

·Cooling: Fan

·Protection rating: IP20

Construction

·Light body dimension: D1000*W260*H90mm

·Net weight: 11kg

Package

·Carton box package size: 1090*380*210mm(1pc/box)

·N.W/G.W/V.W: 11kg/14kg/18kg

·Carton box package size: 1200*390*410mm(2pc/box) [c:08-01-04]

·N.W/G.W/V.W: 22kg/26kg/39kg

·Flight case package size: 1180*610*490mm(4pcs/case)[c:23-10-30]

·N.W/G.W:44kg/79kg

Related Products

Model: VG-4HS432D

Name: 4 Heads 32W LED Beam Spot Light

Product Model: VG-4HS432D

Commissioning Date: 2016-02-05

Sales Status: Selling

Reference Price:

  • VG-4HS432D
  • VG-4HS432D
  • VG-4HS432D
  • VG-4HS432D
  • VG-4HS432D
  • VG-4HS432D
  • VG-4HS432D
  • VG-4HS432D
  • VG-4HS432D
  • VG-4HS432D
  • VG-4HS432D
Technical Specification


·This is a very wonderful 4 heads led beam spot light, it is a update version of VanGaa VG-4HS410D. The light is high power, narrow beam, spot is small, it’s very useful for disco, KTV, night bar, club and other entertainment places.

Features

·4 heads spot beam light, every head is 32W 4in1 LED lamp;

·Every head can be controlled individually;

·High power and brightness;

·Narrow beam effect.

Technical Specifications

Light Sources

·LED: 4pcs 32W 4-in-1 RGBW high brightness LED Lamps

·Lifespan: 60,000 hours

·Color: colorful, RGBW mixing

Optics

·Beam angle: 8degree

·Dimmer: 0~100% electronic dimmer

·Strobe: 1~25times/second

Control

·Control signal: DMX512

·DMX channel: 6CH/12CH/14CH/27CH

·Control mode: DMX-512; Master-slave control mode; Auto-run; Sound active

·Function: 4 individual mini LED Moving Head Lights, 4 narrow beams, every light can be controlled individually, with dimmer, strobe, and speed control function

Movement

·Pan: 540degree, pan fine function, 16bit

·Tilt: 270degree, tile fine function, 16bit

Power Supply

·Related voltage: AC90~240V, 50/60Hz

·Related power: 150W

Working Environment

·Working Temperature: -25-40

·Cooling: Fan

·Protection rating: IP20

Construction

·Light body dimension: D1000*W260*H90mm

·Net weight: 11kg

Package

·Carton box package size: 1090*380*210mm(1pc/box)

·N.W/G.W/V.W: 11kg/14kg/18kg

·Carton box package size: 1200*390*410mm(2pc/box) [c:08-01-04]

·N.W/G.W/V.W: 22kg/26kg/39kg

·Flight case package size: 1180*610*490mm(4pcs/case)[c:23-10-30]

·N.W/G.W:44kg/79kg

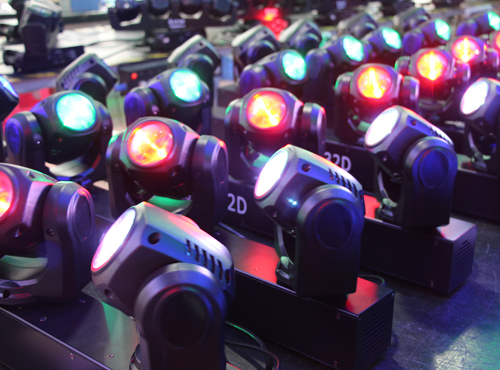

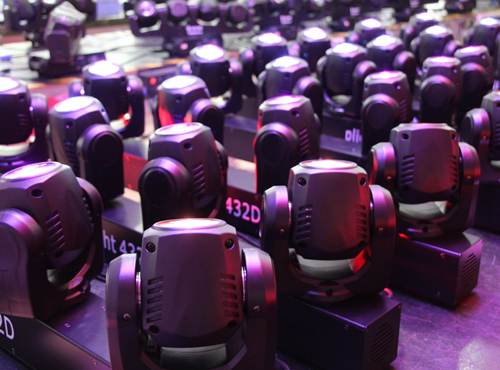

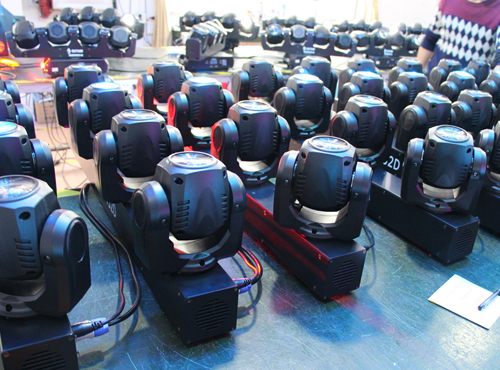

Details Pictures

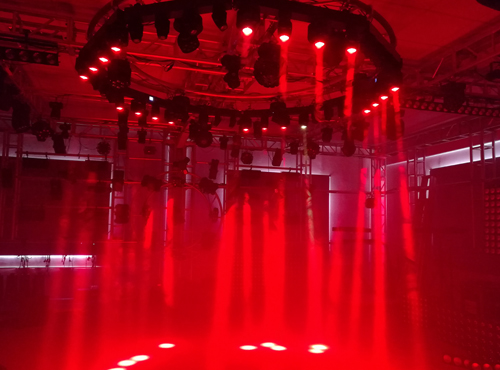

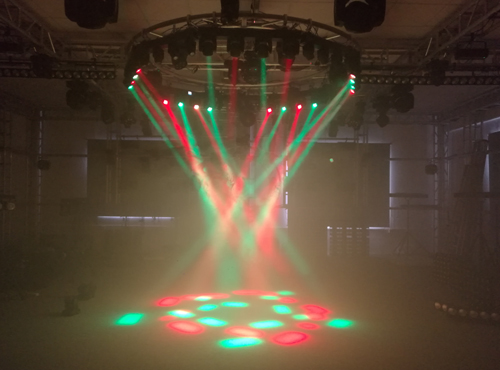

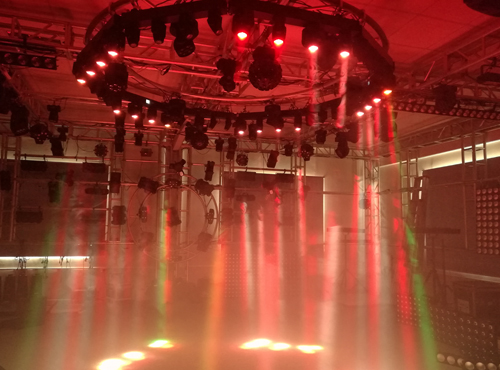

Effect Pictures
