Model: Swift 3725Z

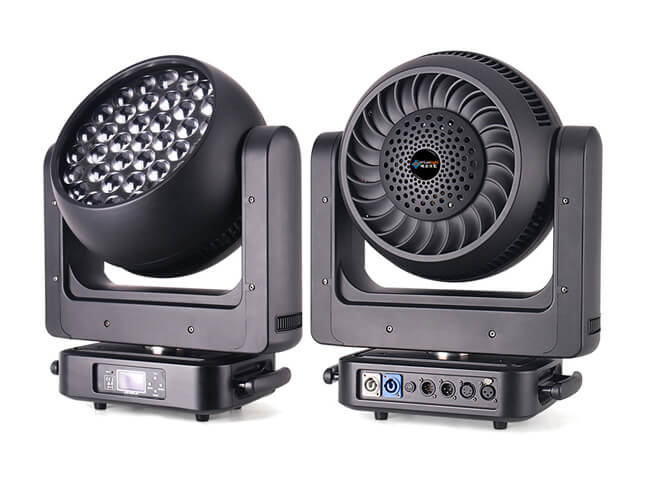

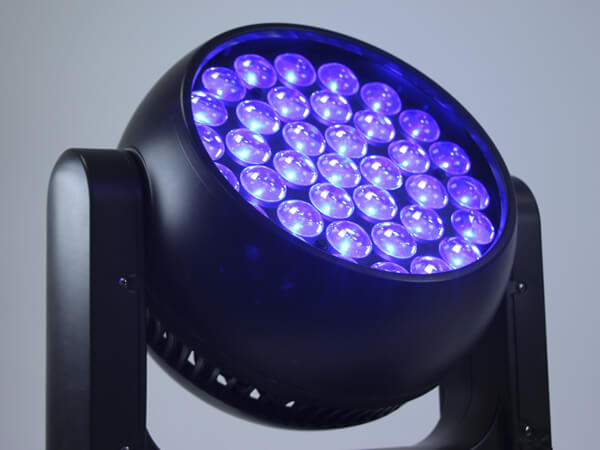

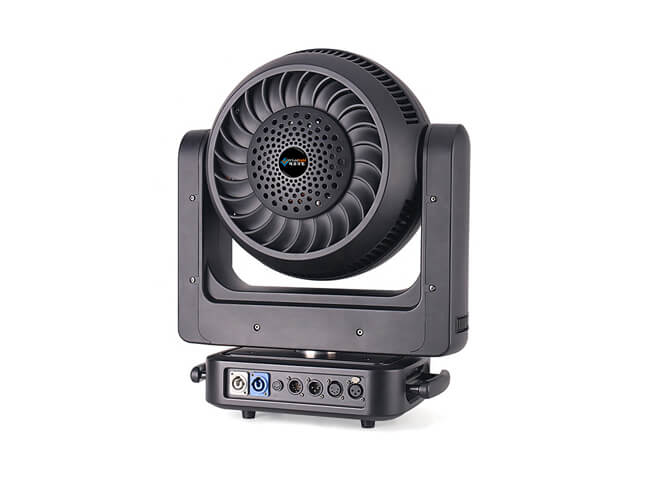

Name: 37pcs 25W 4in1 LED Moving Head Wash Light

Product Model: Swift 3725Z

Commissioning Date: 2019-10-20

Sales Status: Selling

Reference Price: Inquiry Here

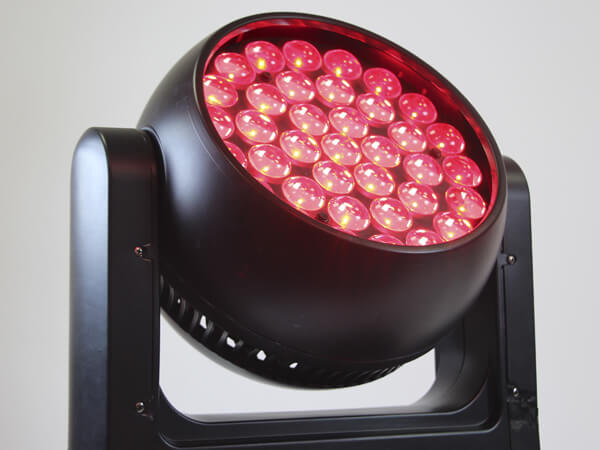

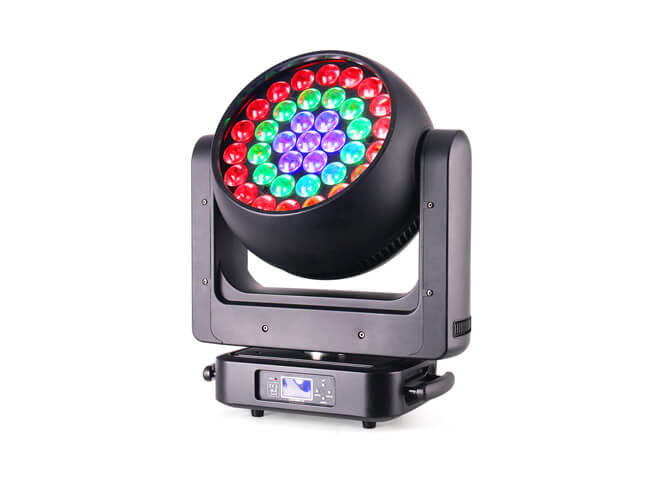

·This is a high powerful 37pcs 25W LED Moving Head Zoom Light, the zoom range can from 10degree to 60degree. It can be a beam light, and a moving head wash light. The light is very suitable for the stage performance, theatre, TV, studio, rental and other entertainment places.

Features

·Extremely small, fast and powerful LED Moving Head Beam Zoom Light;

·Wide zoom range from 10degree to 60degree;

·Great built-in lighting shows programs under master/slave mode;

·Blue LCD display for easy navigation;

·Perfect for stage, theatre, TV, studio, rental and discotheques.

Technical Specifications

Light Sources

·LED: 37pcs 40W 4in1 LED lamps

·Lifespan: 50, 000h

·Color: RGBW 4in1 colorful

Optics

·Beam angle: 10-60degree

·Dimmer: 0-100% linear dimmer

·Strobe: 1-25 times/second

Light Output

·Optimal projection distance: 50-180m

Movement

·Pan(X axis): 540degree

·Tilt(Y axis): 270degree

Control

·Control mode: DMX-512; Mater/slave mode; Demo mode

·DMX channel: 14CH, 26CH

·Display of control panel: LCD display, four buttons

Power Supply

·Related voltage: AC100V-240V, 50/60Hz

·Related power: 1000W

·Light output: 925W

Construction

·Body dimension: D402*W377*H520mm

·Net weight: 13kg

·Shell color: black

·Shell material: ABS

Working Environment

·Working temperature: -25-40

·Cooling: Fan

·Protection rating: IP20

Equipment Optional Configuration

·Built-in battery: have the off-power setting ID address function

·Net work: artnet net work, can use the artnet signal control

Standard Configuration Spare Part List

·Cable: 1pc 3-pin DMX cable, 1pc power cable with plug(America standard, Euro standard, or other standard)

·User manual: English version user manual

·Clamp bridge: 1 set clamp bridge

Optional Configuration Spare Parts List

·Clamps: different style clamps optional (choose from VanGaa homepage “Accessaries series”)

·Safety rope: different size safety ropes optional (choose from VanGaa homepage “Accessaries series”)

Package

·Carton board box package: 490*350*630mm(1pc/carton)

·N.W/G.W: 19kg/22kg

·Flight case package: 910*610*710mm(2pc/case)[f:20-05-25]

·N.W/G.W: 26kg/63kg


Selling Maintain Spare Parts List

·Switching power supply: Swift 3725Z-P

·LED lamp board: Swift 3725Z-L

·Main board: Swift 3725Z-M

·Drive board: Swift 3725Z-D


AD

Related Products

Model: Swift 3725Z

Name: 37pcs 25W 4in1 LED Moving Head Wash Light

Product Model: Swift 3725Z

Commissioning Date: 2019-10-20

Sales Status: Selling

Reference Price: Inquiry Here

  • Swift 3725Z
  • Swift 3725Z
  • Swift 3725Z
  • Swift 3725Z
  • Swift 3725Z
  • Swift 3725Z
  • Swift 3725Z
  • Swift 3725Z
  • Swift 3725Z
  • Swift 3725Z
  • Swift 3725Z
  • Swift 3725Z
Technical Specification

·This is a high powerful 37pcs 25W LED Moving Head Zoom Light, the zoom range can from 10degree to 60degree. It can be a beam light, and a moving head wash light. The light is very suitable for the stage performance, theatre, TV, studio, rental and other entertainment places.

Features

·Extremely small, fast and powerful LED Moving Head Beam Zoom Light;

·Wide zoom range from 10degree to 60degree;

·Great built-in lighting shows programs under master/slave mode;

·Blue LCD display for easy navigation;

·Perfect for stage, theatre, TV, studio, rental and discotheques.

Technical Specifications

Light Sources

·LED: 37pcs 40W 4in1 LED lamps

·Lifespan: 50, 000h

·Color: RGBW 4in1 colorful

Optics

·Beam angle: 10-60degree

·Dimmer: 0-100% linear dimmer

·Strobe: 1-25 times/second

Light Output

·Optimal projection distance: 50-180m

Movement

·Pan(X axis): 540degree

·Tilt(Y axis): 270degree

Control

·Control mode: DMX-512; Mater/slave mode; Demo mode

·DMX channel: 14CH, 26CH

·Display of control panel: LCD display, four buttons

Power Supply

·Related voltage: AC100V-240V, 50/60Hz

·Related power: 1000W

·Light output: 925W

Construction

·Body dimension: D402*W377*H520mm

·Net weight: 13kg

·Shell color: black

·Shell material: ABS

Working Environment

·Working temperature: -25-40

·Cooling: Fan

·Protection rating: IP20

Equipment Optional Configuration

·Built-in battery: have the off-power setting ID address function

·Net work: artnet net work, can use the artnet signal control

Standard Configuration Spare Part List

·Cable: 1pc 3-pin DMX cable, 1pc power cable with plug(America standard, Euro standard, or other standard)

·User manual: English version user manual

·Clamp bridge: 1 set clamp bridge

Optional Configuration Spare Parts List

·Clamps: different style clamps optional (choose from VanGaa homepage “Accessaries series”)

·Safety rope: different size safety ropes optional (choose from VanGaa homepage “Accessaries series”)

Package

·Carton board box package: 490*350*630mm(1pc/carton)

·N.W/G.W: 19kg/22kg

·Flight case package: 910*610*710mm(2pc/case)[f:20-05-25]

·N.W/G.W: 26kg/63kg


Selling Maintain Spare Parts List

·Switching power supply: Swift 3725Z-P

·LED lamp board: Swift 3725Z-L

·Main board: Swift 3725Z-M

·Drive board: Swift 3725Z-D


AD

Details Pictures

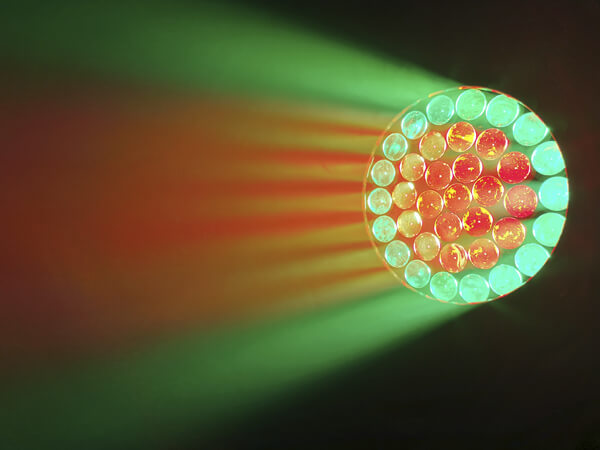

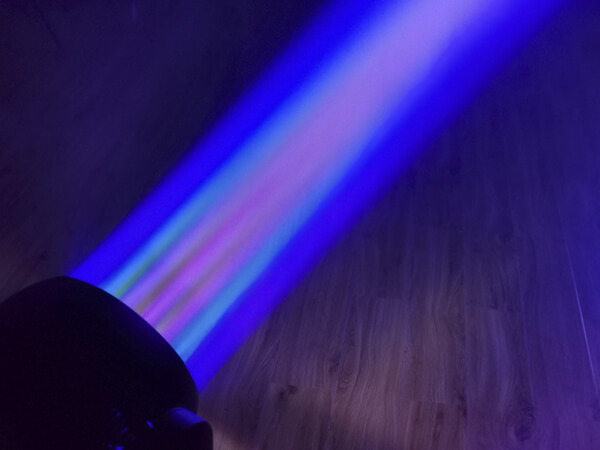

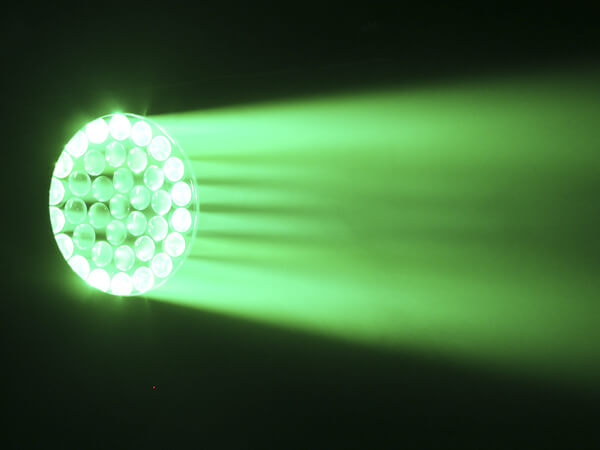

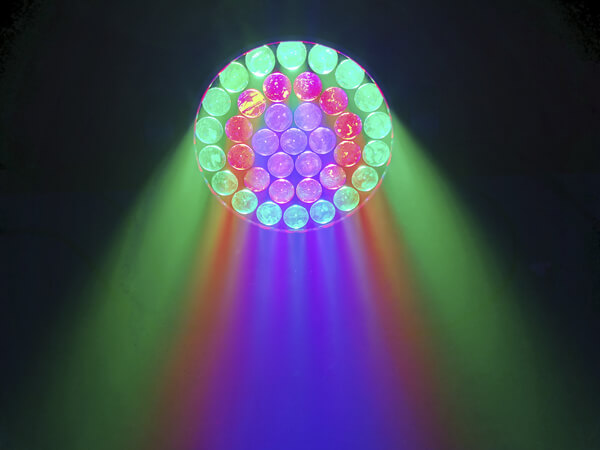

Effect Pictures
