Model: VG-CZ360

Name: 360W LED Auto Show Projector Light

Product Model: VG-CZ360

Commissioning Date: 2015-10

Sales Status: Selling

Reference Price:


·As a professional lighting manufacturer, we have very strong technology for the design. To meet the auto show need, we have designed this high power LED auto show light, it equips pure white led lamp, the output can reach to 360W. This light is very useful for the auto show, outdoor fashion show and other indoor or outdoor place.

Features

·High power, output can reach to LED 360W;

·Warm white, cool white and pure white optional;

·Linear DMX control, dimmer 0~100%;

·Equips brand LED lamps.

Technical Specifications

Light Sources

·LED: 36pcs 10W import CREE pure white LED lamps

·Lifespan: 100000h

·Color: white

·Color temperature: 6500K-7000K

Optics

·Beam angle: 15degree/20degree/35degree

·Dimmer: 0-100% linear dimmer

·Strobe: 1-25 times/second

·CRI: >85Ra

Light Output

·Luminous flux: 13000 Lm

·Illuminance: 13000 Lux (5m 15°)

·Optimal projection distance: 4-30m

Control

·Control mode: DMX 512; Auto-run; Demo

·DMX channel: 2CH

·Display of control panel: LED Display

Power Supply

·Related voltage: AC100V-240V, 50/60Hz

·Related power: 360W

Construction

·Body dimension: D340*W240*H240mm

·Net weight: 6.5kg

·Shell color: black

·Shell material: high hardness fire retardant plastic

Working Environment

·Working temperature: -25-40℃

·Cooling: Fan

·Protection rating: IP20

Standard Configuration Spare Part List

·Cable: 1pc 3-pin DMX cable, 1pc power cable with plug(America standard, Euro standard, or other standard)

·User manual: English version user manual

Optional Configuration Spare Parts List

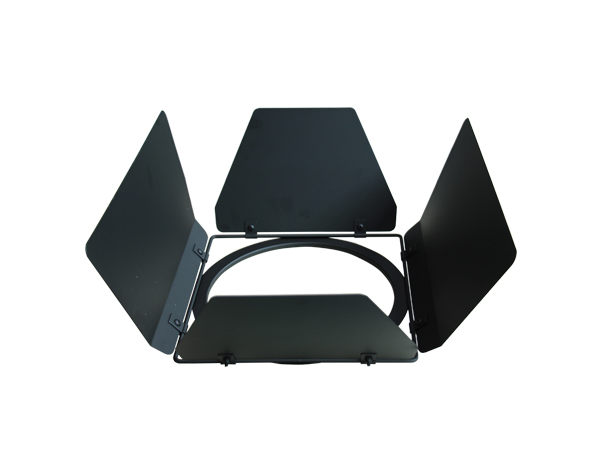

·Clamps: different style clamps optional (choose from VanGaa homepage “Accessaries series”)

·Safety rope: different size safety ropes optional (choose from VanGaa homepage “Accessaries series”)

Package

·Carton board box package size: 300*300*560(1pc/carton)

·N.W/G.W/V.W: 6.5kg/7.8kg/10.5kg

Selling Maintain Spare Parts List

·Switching power supply: VG-CZ360-P

·LED lamp board: VG-CZ360-L

·Main board: VG-CZ360-M

·Drive board: VG-CZ360-D
