VG-MH350A
  • VG-MH350A
  • VG-MH350A
  • VG-MH350A
  • VG-MH350A
  • VG-MH350A
  • VG-MH350A
  • VG-MH350A

Model: VG-MH350A

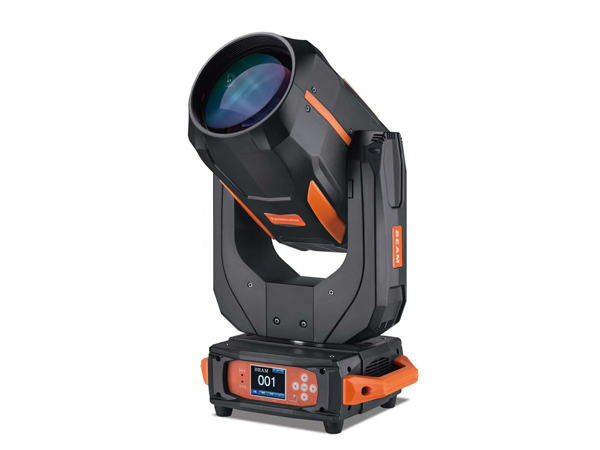

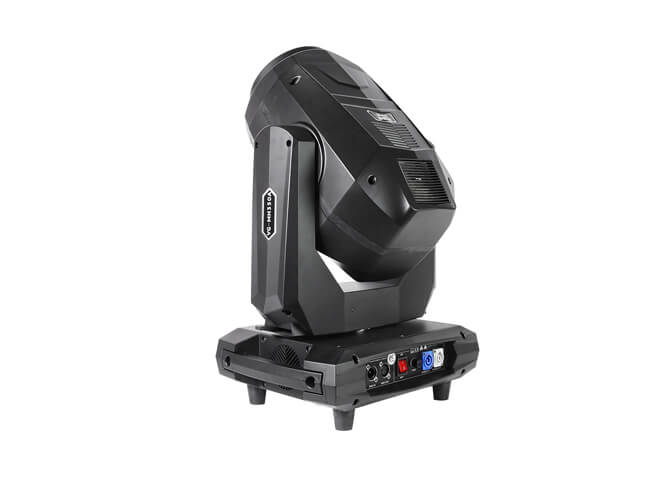

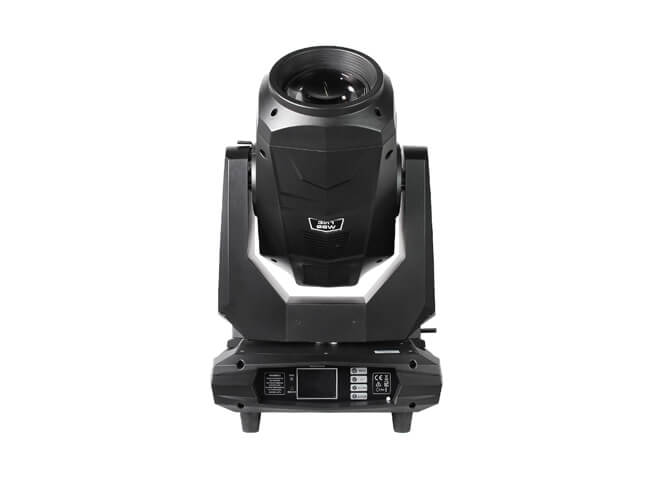

Name: 350W 3in1 Spot Beam Wash Moving Head Light

Product Model: VG-MH350A

Commissioning Date: 2015-10

Sales Status: Selling

Reference Price:

·This new style 350W intelligent moving head zoom beam light has novel design and compact structure can be as a very professional moving head light. It has small beam angle, bean angle scale freely, has multistage beam angle change effect. It has high brightness, downy lighting, and professional linear focus to meet the high quality lighting needs. This type moving head light can be widely used in professional stage performances, studio, TV station, the theatre and other entertainment places.

Features

·New style intelligent moving head light, beam lighting with zoom function;

·Double prism effect, beam angle adjustable;

·Min 5.4degree to28degree zoom beam, close to the parallel light, electronic linear focus, multistage beam angle change effect;

·With soft light angle adjustable function;

·Wireless DMX 512 receiving modules are optional.

Technical Specifications

Light Sources

·Lamp: 17R 350W lamp

·Lifespan of lamp: average 2000h

·Color: white

Optics

·Beam angle: 3degree

·Rotating gobo wheel: 12 gobos+ white

·Static gobo wheel: 13 fixed gobos + white

·Color wheel: 13 color + white

·Prism : 12-facets circular rotating prism

·Zoom: 2.5°-42°

·Strobe: Dual lens strobe (0.5-9times/second)

·Dimmer: Smooth dimmer from 0-100%

·Focus: Linear adjustment

·Frost: 100% frost

Light Output

·Luminous flux: 12577 Lm

·Illuminance: 7865 Lux (5m 2.5°)

·Optimal projection distance: 5-40m

Movement

·Pan(X axle): 540°, 8bit/16 bit movement solution, optional automatic

·Tilt(Y axle): 270°, 8bit/16 bit movement solution, optional automatic

·Pan/Tilt position correction

·Pan movement 0°-540°at max…….

·Tilt movement 0°-270°at max……..

Control

·Control mode: DMX512; Master/salve; Demo

·DMX channel: 16CH/24CH

·Display of control panel: LCD display + 4 buttons

Power Supply

·Related voltage: AC100V-240V, 50/60Hz

·Related power: 550

Construction

·Body dimension: D380*W240*H590mm

·Net weight: 21kg

·Shell color: black

·Shell material: ABS

Working Environment

·Working temperature: -25-40

·Cooling: Fan

·Protection rating: IP20

Equipment Optional Configuration

·Built-in battery: have the off-power setting ID address function

·Net work: artnet net work, can use the artnet signal control

Standard Configuration Spare Part List

·Cable: 1pc 3-pin DMX cable, 1pc power cable with plug(America standard, Euro standard, or other standard)

·User manual: English version user manual

·Clamp bridge: 1 set clamp bridge

Optional Configuration Spare Parts List

·Clamps: different style clamps optional (choose from VanGaa homepage “Accessaries series”)

·Safety rope: different size safety ropes optional (choose from VanGaa homepage “Accessaries series”)
