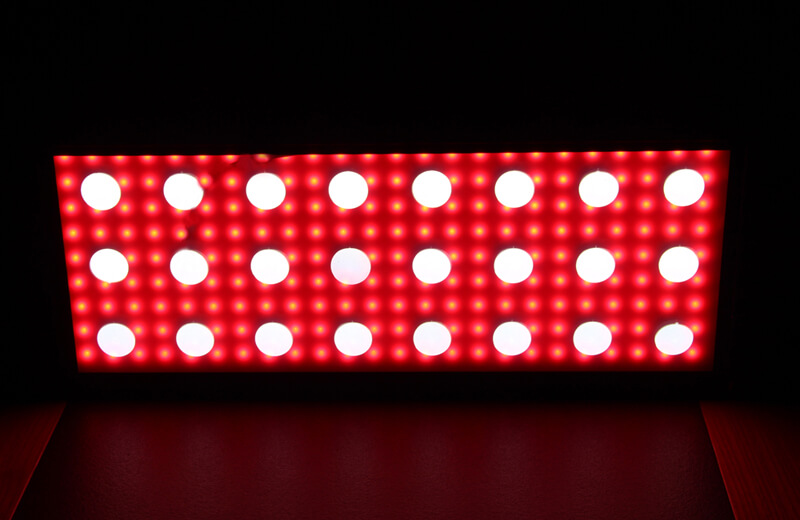

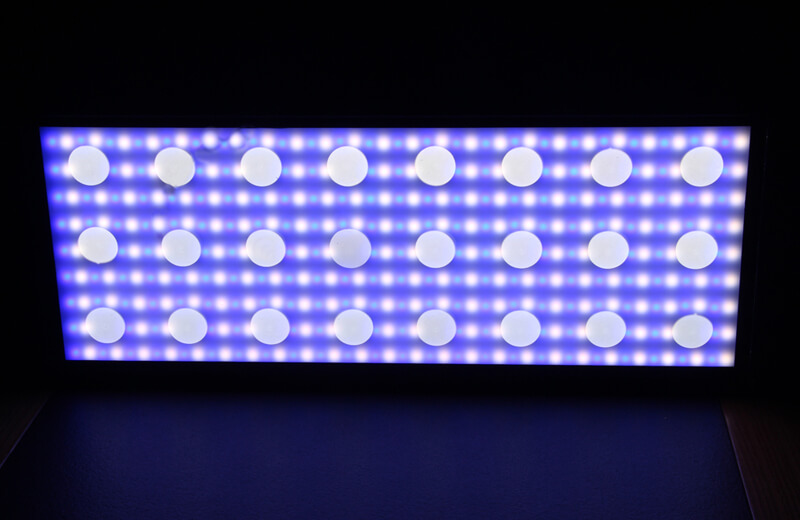

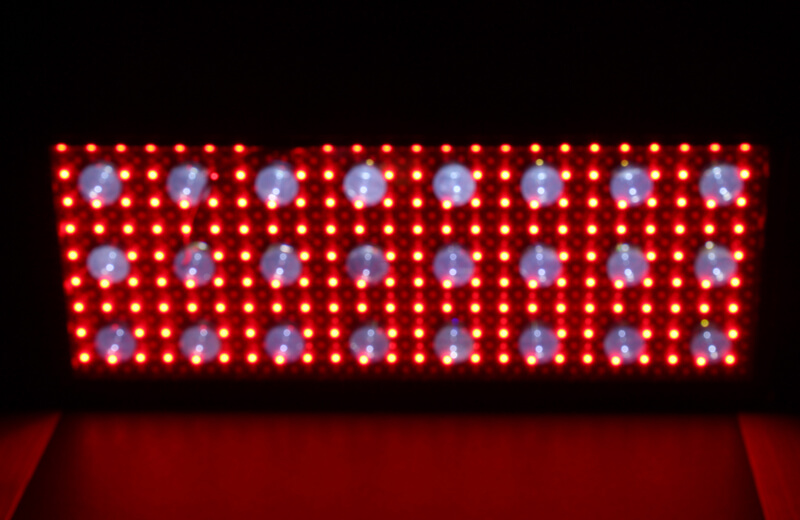

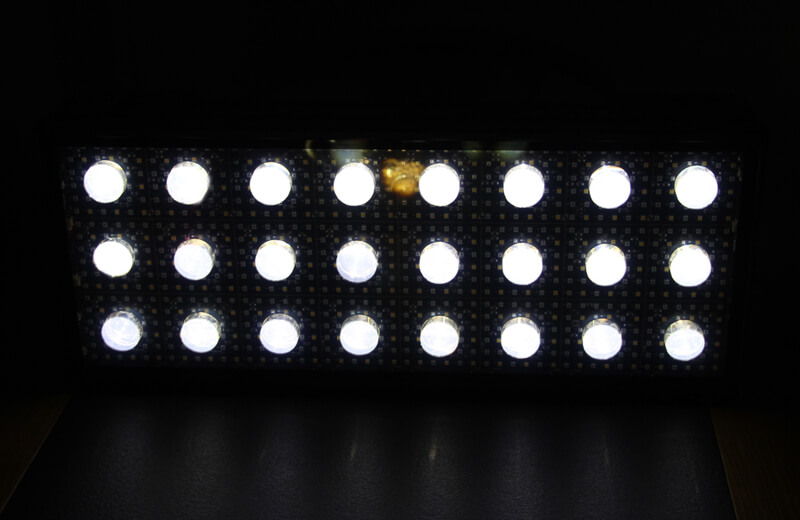

·Inspired by the lighting product designer by the effect of storm and lightning, we designed this 24 ways matrix stroboscopic stage effect light. This light is equipped with 24pcs high brightness 4in1 color LED, coupled with a self molded spotlight lens, which can add high brightness beams with pixels to the stage effect. At the same time, around the beam of light, we used 192pcs colored auxiliary led beads to make the entire panel of the light more colorful, which gives this light the functions of strobe, beam, and floodlight dyeing. This light can help lighting designers better realize their creativity in stage effect design, and turn the inspiration in their minds into reality. VG-MS2412D will be well used for performance, club, stage and other entertainment places.
Product Features
·24 controllable sections of R, G, B, W areas, with high-power white light as pixel control;
·Standard configuration of color temperature high-power beam white light at 5700k-6200k, can customize color temperature according to requirements;
·Equipped with electronic atomized glass, providing transparent or frosted effect
·Creatively output 24 ways powerful beams of light;
·0-100% linear dimming;
·Excellent color mixing effect;
·The vivid effect of dynamic strobe;
·Hidden twist lock design, quick tool free combination.
Technical Parameters
Light Source
·LEDs: 24x12W CW LED and 196x12W 4in1 RGBW LED
·Color of beam: white
·Color of auxiliary light: RGBW 4in1 color mixing
·Service life: 50000h
Optical System
·Beam angle of beam: 5°
·Beam angle of auxiliary light: 100°
·Dimmer: 0-100 linear dimmer
·Strobe: 1-25time/s
Light Output
·Optimal projection distance: 4-10m
·Illuminance: 14500lux@1m
Control of LED
·Control of beam: pixel control of 24pcs led(every led can control individually)
·Control of auxiliary light: 24 sections pixel control
Control and Programming
·Control mode: DMX-512; Master/slave mode; Demo mode
·DMX channel: 8CH, 18CH, 121CH
·Control panel: LCD display + 4 buttons
Thermal Specification
·Maximum ambient temperature: 45 °C (113 °F)
·Maximum surface temperature: 170 °C (338 °F)
Electrical Specification
·Power supply: Electronic auto-ranging
·Input voltage range: AC90-240V, 50/60Hz
·Power consumption: 1500W
Mechanical Specification
·Light size: 531Dx215Wx135Hmm
·Weight: 10kg
·Material: steel, plastic, Aluminum die casting
·Appearance color: black
Using Environment
·IP rating: IP20
·Working temperature: -25-40℃
·Cool system: Fan, Aluminum radiator
Installation
·Installation style: hanging/stand on floor/connection pieces by pieces
Standard Accessories Light
·1pc DMX cable
·1pc power cable
·1pc English version user manual
Optional Accessories Light
·Safety cable: choose the model which you need, chargeable
·Clamps: choose the model which you need, chargeable
·Flight case: choose the quantity which need pack, chargeable
Selling Spare Parts List
·Switching power supply: VG-MS2412D-P
·LED lamp board: VG-MS2412D-L
·Main board: VG-MS2412D-M
·Drive board: VG-MS2412D-D
