·Combining the features of the LED energy-saving and environment-protective, using high efficiency constant current & new heat dissipation technology, 4096 Grey Scale adjusted and create revise technology to make the dimmer to be more smoothly. This par light is applying for the big show, stage, theatre, and other indoor places.

Features

·Advantages of LED technology extremely long life, energy-saving and environment-protective;

·Low power consumption, minimal heat emission, maintenance free with brilliant light radiation;

·Equipped with 18pcs 12W RGBW 4-in-1 LEDs;

·Continuous RGBWAUV color changing;

·DMX-controlled operation or stand alone operation with master/slave function;

·Have three kinds of strobe effect(random strobe, pulse-effect in sequences, strobe effect);

·Rainbow-effect with adjustable speed;

·DMX-control via every standard DMX controller.

Technical Specifications

Light Sources

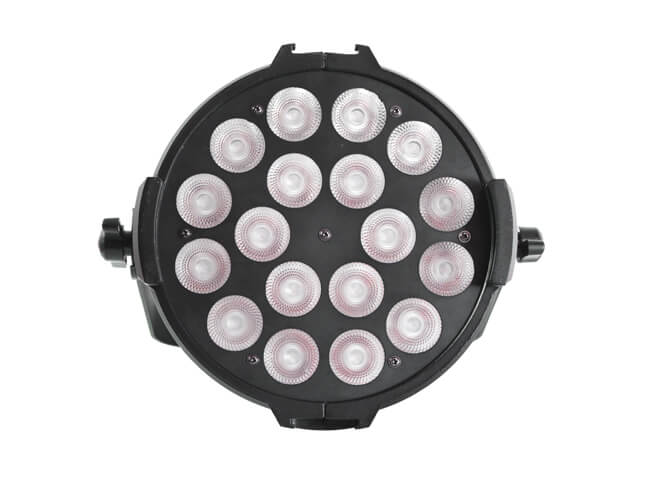

·LED: 18pcs 12W 4in1 RGBW LEDs

·Lifespan: 500,000h

·Color: RGBW color mixing

Optics

·Beam angle: 25degree(45degree is optional)

·Dimmer: 0-100% linear dimmer

·Strobe: 1-25 times/second

Light Output

·Optimal projection distance: 4-15m

·Grey scale: 4096degree

Control

·Control mode: DMX-512 mode, Auto mode, Master/slave mode

·DMX channel: 4CH, 9CH

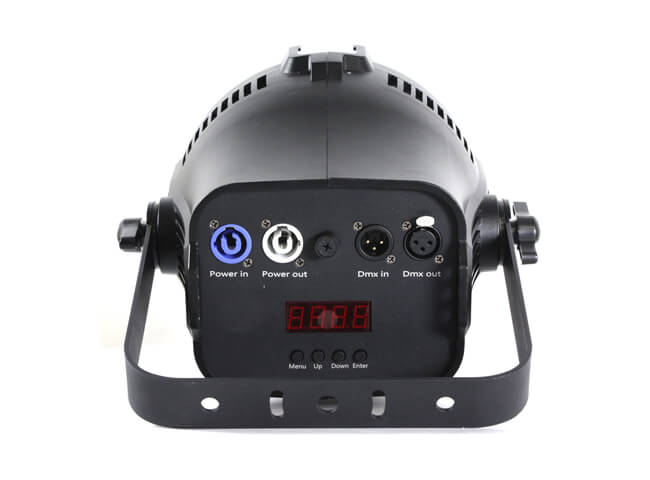

·Display of control panel: digital tube + buttons

·Effect: 0~100% dimmer, strobe, color change, color fade

Power Supply

·Related voltage: AC100V-240V, 50/60Hz

·Related power: 180W

Construction

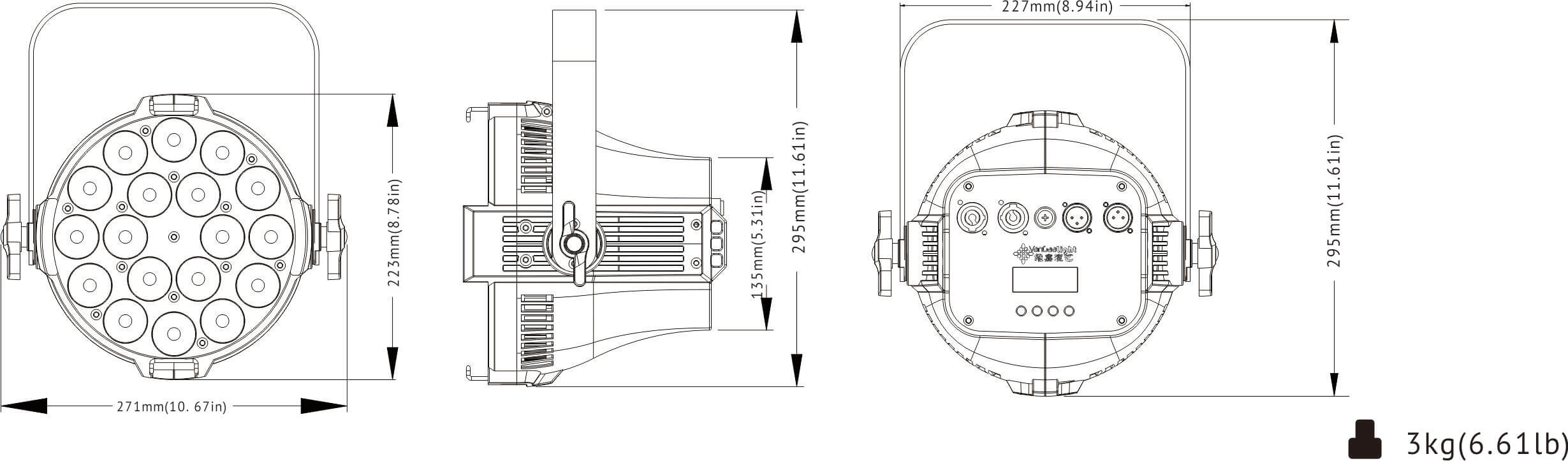

·Body dimension: D315*W295*H248mm

·Net weight: 3kg

·Shell color: black

·Shell material: Aluminum die casting housing

Working Environment

·Working temperature: -25-40℃

·Cooling: Fan

·Protection rating: IP20

Standard Configuration Spare Part List

·Cable: 1pc 3-pin DMX cable, 1pc power cable with plug(America standard, Euro standard, or other standard)

·User manual: English version user manual

Optional Configuration Spare Parts List

·Clamps: different style clamps optional (choose from VanGaa homepage “Accessaries series”)

·Safety rope: different size safety ropes optional (choose from VanGaa homepage “Accessaries series”)

Selling Maintain Spare Parts List

·Switching power supply: VG-LPI1810D-P

·LED lamp board: VG-LPI1810D -L

·Main board: VG-LPI1810D-M
